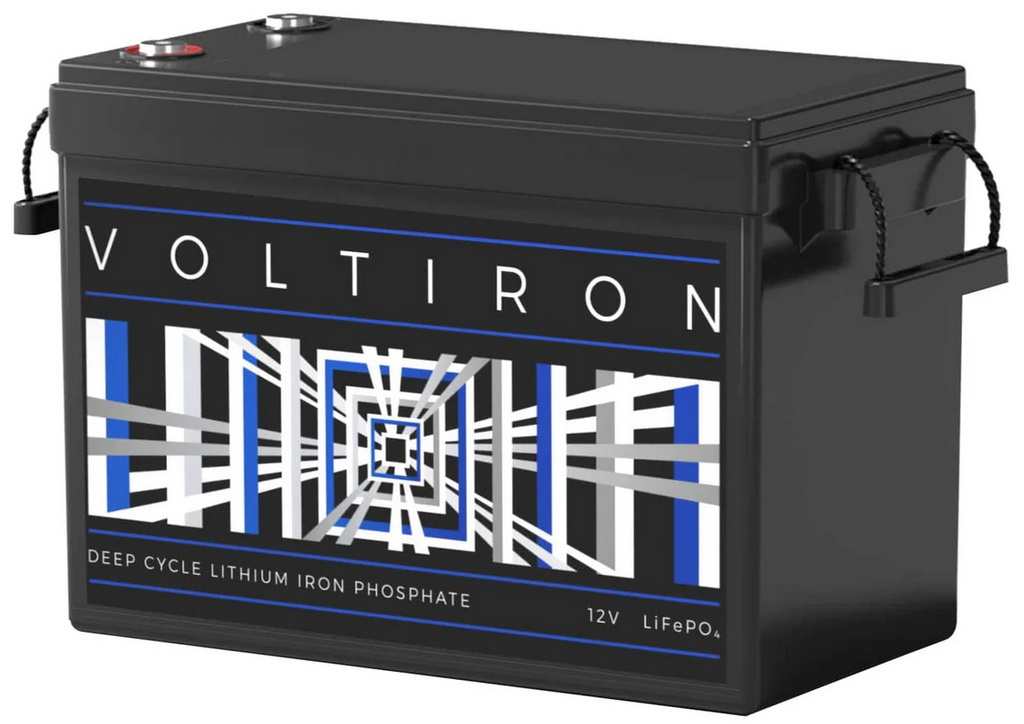

Lithium 12V LiFePO₄ 300Ah PowerCore
Serious power. Built to last.
Engineered through years of lithium innovation and proven in real-world conditions, the Lithium 12V LiFePO₄ 300Ah PowerCore isn’t just an upgrade — it’s a major leap forward in 12V battery performance.
Built on LiFePO₄ (Lithium Iron Phosphate) chemistry, this battery delivers energy, fast charging, thermal stability. Its compact, efficient design allows seamless integration into 4x4, RV, marine, solar, off-grid, and backup power systems, making it the ideal choice.
At its core, the Lithium 12V 300Ah PowerCore is built using Grade A EVE prismatic cells, paired with a software-controlled JBD Battery Management System (BMS) rated for high-current applications. This intelligent protection system continuously monitors performance and safeguards against over-charging, over-discharging, overheating, short circuits, and voltage imbalance.
The result?
A battery designed for maximum safety, consistent output, and long-term durability, even in harsh Australian conditions.
SPECIFICATION:
Type of Battery: Lithium-Iron Phosphate (LiFePO4)
Standard Voltage: 12.8V
Usable Capacity: 300Ah (3840Wh)
Cycle Life: 4000 @ 80% DoD
Charging Cut-Off Voltage: 14.8±0.2V
Discharge Cut-Off Voltage: 9.0±0.2V
Over-Charge Recovery Voltage: 14±0.2V or Discharge ≥ 2A
Over-Discharge Recovery Voltage: 10.8±0.2V or Charge ≥ 2A
Max. Continous Charging: Current 300A (1C)
Max. Continous Discharging: Current 300A (1C)
Peak Discharge Rate (1.5s): 1240±250A (4C+)
Battery Pack Assembly Method: 4S1P
Cell Type: EVE Grade A 3.2V 304Ah LFP Prismatic Cell
BMS Brand: JBD Smart 300A-S Programmable BMS
Charging Type: CC/CV
Charging Temperature: -10 ~ 65°C
Discharging Temperature: -20 ~ 75°C
Charging Temp Protection: ≥65±5℃
Discharging Temp Protection: ≥75±5℃
Maximum Battery Connectivity: Unlimited in Parallel/Four in Series
Input/Output Port Type: M6
Compact dimensions: 320x190x200mm (includes handles )
Case Material: ABS
Ip Rating: IP67
Certifications: IEC62619/UL1642A/UN38.3/ROHS
Warranty: 5 Year Full Replacement Warranty
-
300Ah
-
✅ Ultra-long LiFePO₄ cycle life
-
✅ Lightweight & compact compared to AGM and Lower grade lithium cells
-
✅ Fast charging & low internal resistance
-
✅ Ideal for 4WD, camping, marine, solar & off-grid systems
Performance specifications are based on controlled testing conditions.
Actual performance may vary based on usage, temperature, and installation.
Cycle life and capacity are estimates, not guarantees.
